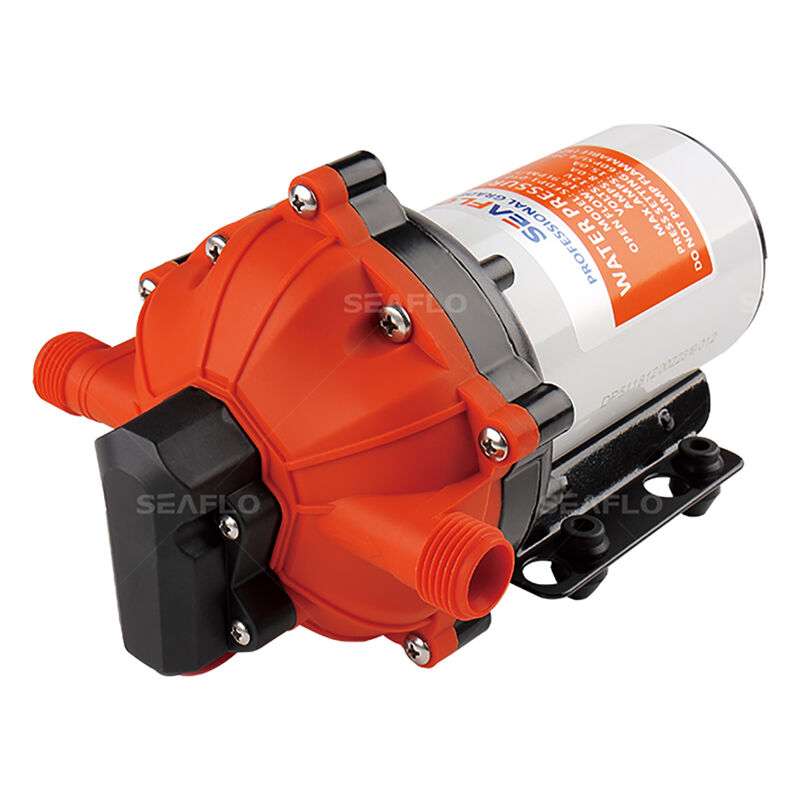

The Seaflo 55-Series Heavy-Duty Water Pump provides high-volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. The 55-Series pump is self-priming and can run dry without damage. Offering reliable performance and a low current, this automatic demand water system pump has a built-in pressure switch that automatically starts and stops the pump when the faucet is opened and closed. It’s also easy to install, service, and winterize.
• Can supply up to 4 fixtures
• Precise pressure control and stable performance
• Good sealing performance, waterproof, and dustproof
• Good heat dissipation
• Can be run dry
• Low starting pressure reduces cycling
• Can be used for fresh and saltwater

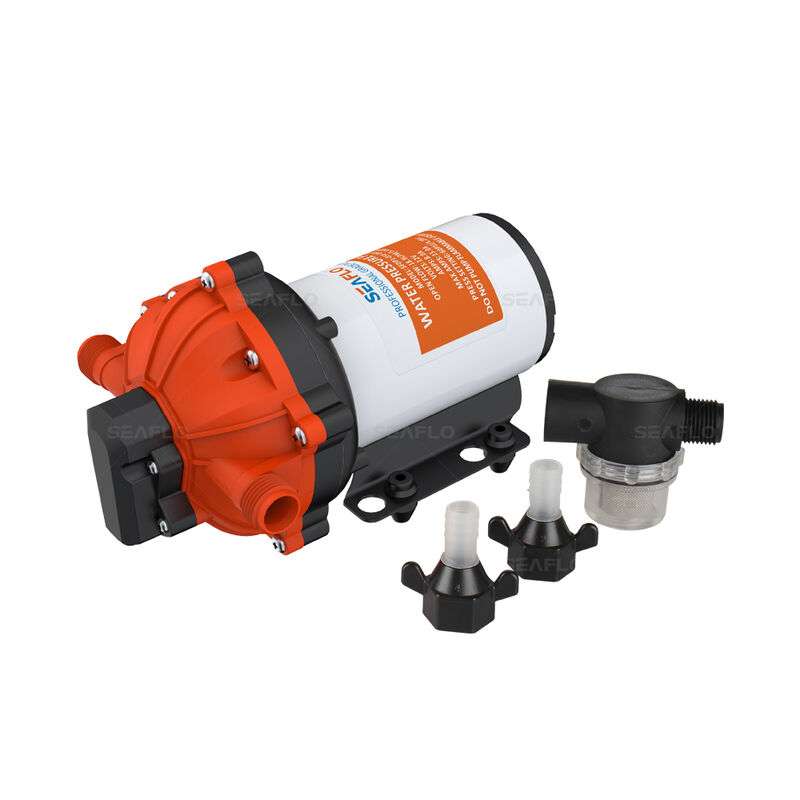

• Threaded connections with multiple fittings allow connection to any outlet

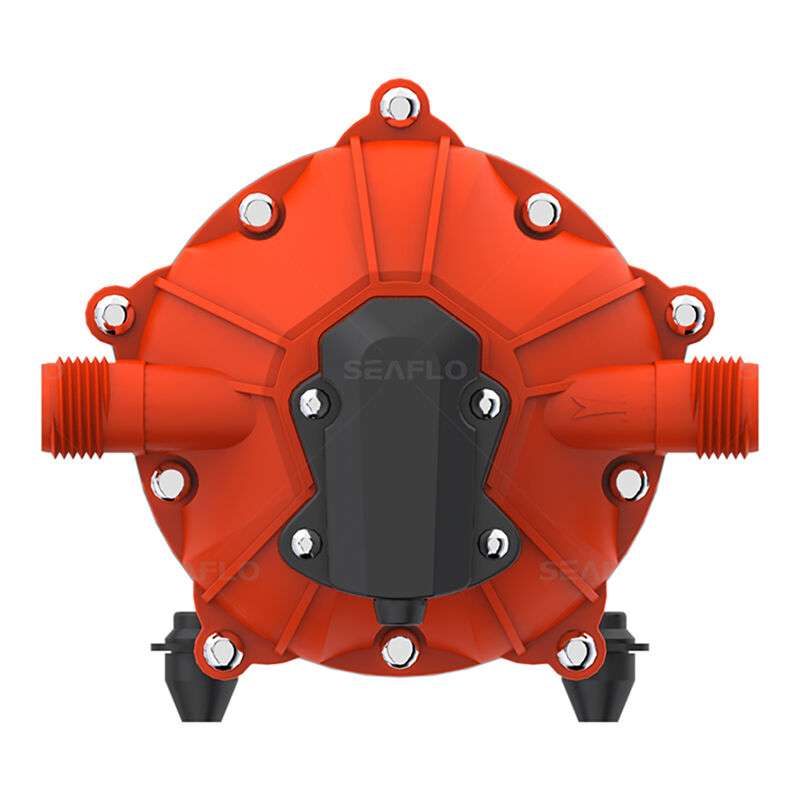

• 5-chamber diaphragm for high-volume water flow
• Motor is no louder than your running room fan
• Semi-rigid rubber feet for noise reduction from vibration
Specs
Model: SFDP1-055-060-55
Voltage: 12V
Open Flow: 5.5 GPM
Control Type: Pressure switch set at 60 PSI
Max Draw: 17A
Valves: EPDM
Diaphragm: Santoprene
Housing Material: Nylon/Polypropylene
Inlet/Outlet Ports: 1/2″-14 MNPT
Leads: 14 AWG, 13″ long with 2-pin connector
Weight: 6.1 lbs.
Overall Dimensions: 8.5″L x 5.75″W x 5.16″H
