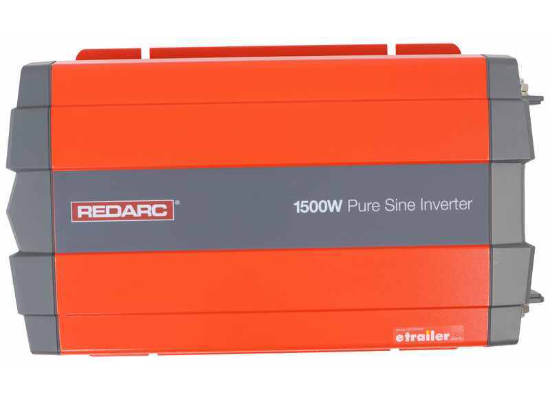

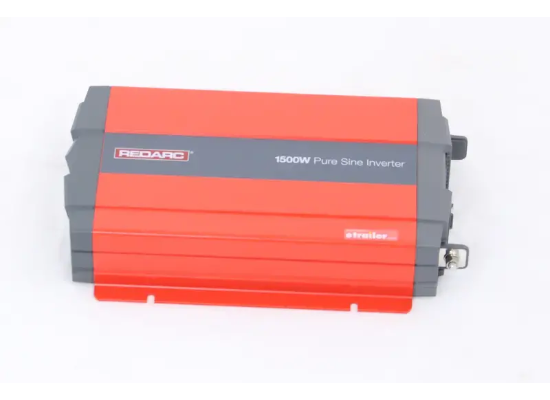

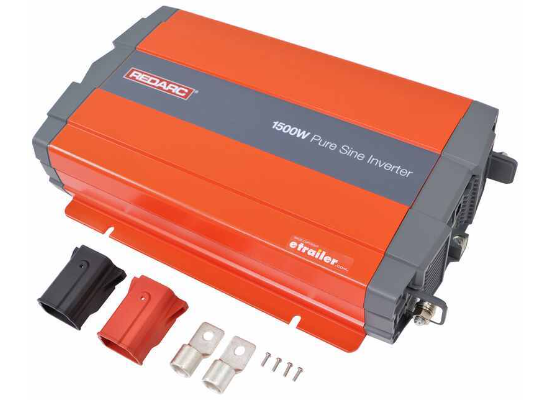

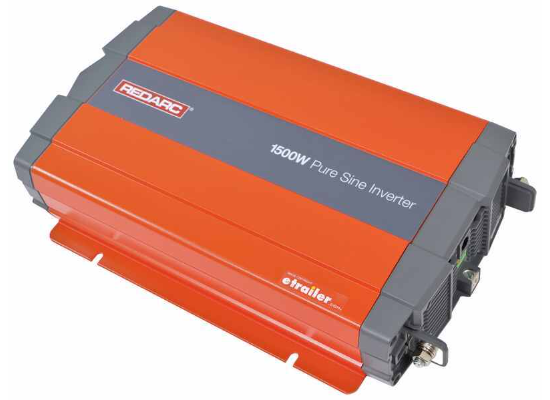

Redarc Industrial Pure Sine Wave Inverter – GFCI – 1,500 Watt – 12V

Description

Redarc RV Power Inverter – RED23RR

1,500-Watt inverter lets you use appliances and devices wherever the road takes you. Pure sine wave technology is perfect for sensitive electronics like HDTVs and computers. Changes your RV battery’s DC output into clean AC power.

Features:

• 1,500-Watt industrial inverter provides AC power for electronics and appliances
  • Uses DC power coming from your RVs battery bank
• Pure sine wave technology replicates household AC power, allowing you to run devices safely
  • Perfect for sensitive electronics like HDTVs and computers
• LED indicators show input voltage level, output load level, and fault conditions
• Multiple connection points let you secure cables and external devices to the inverter
  • Includes 2 GFCI AC outlets, DC input terminals, and remote port
• Built-in safety features protect your RV’s electrical system
• Flush-mount remote (RED95RR – sold separately) lets you monitor and control the inverter inside your RV
• Fuse block installation kit (not included) lets you safely connect the inverter to your RV battery
• Compatible with Redarc RedVision vehicle management system (RED89FR – sold separately)

Specs:

• Application: 12V battery systems
• Rated power:
  • Running (rated) power output: 1,500 watts
  • Starting (surge) power output: 2,650 watts
• Voltage:
  • Maximum power: 12V DC
  • Input: 10.5 – 16.5 VDC
  • Output: 100 – 120 VAC
• Temperature ranges:
  • Operating range: -4 F to 104 F
  • Storage range: -22 F to 158 F
• Dimensions: 16-9/16″ long x 9-3/4″ wide x 3-1/4″ tall
• Weight: 9.7 lbs
• 2-Year warranty

This 12V inverter changes DC output from your RV batteries into AC power so you can plug in tools and appliances. Using pure sine wave technology, it creates clean power with low distortion, making it safe, efficient, and perfect for sensitive electronics like computers. Plus, the inverter can generate 2,650 starting watts and 1,500 running watts which is a great fit for small appliances and electronics.

Functions and Features

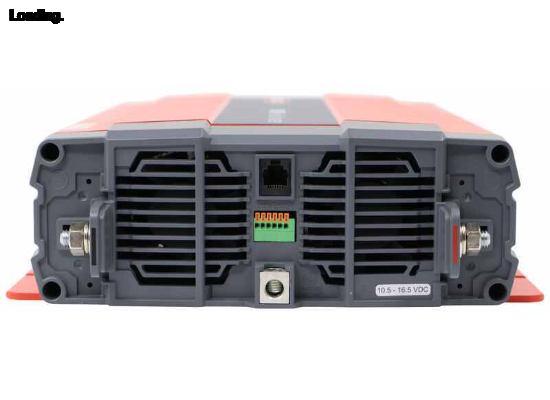

The inverter includes 2 GFCI outlets for AC loads, positive and negative DC input terminals that connect to your batteries, and a port for a flush-mount remote (RED95RR – sold separately). It has a function switch that lets you select different output voltages (100V, 110V, 115V, and 120V) and frequencies (50Hz and 60Hz). This switch can also turn the power saver on and off. Additionally, the power saving adjustment dial near the function switch sets the input and wake up thresholds for the power saver.

The system includes a number of safety features. It offers protection from over/under voltage, overloading, and overcurrent. The inverter also uses a heat sink process to protect from extreme temperatures, and an internal cooling fan removes excess heat from the unit.

For additional safety, installing a fuse between the battery bank and the inverter will protect your equipment from power surges.

How It Installs

The inverter mounts inside your RV in a dry location with ventilation. It should be installed in close proximity to the battery bank, but not in the same compartment. The DC terminals are wired to the battery bank.

Available Flush-Mount Remote Provides Easy Monitoring and Control

A flush-mount remote (RED95RR – sold separately) lets you monitor and control the inverter from inside your RV. Easily turn your inverter on and off without leaving your RV. It also has an LED which indicates the inverter’s status.

R-12-1500RS-NA Redarc Pure Sine Wave Power Inverter – RV Ready – 1500 Watt – 12 Volt

Installation Details
