Pro Series Tandem 12,000 lbs. Square Trailer Jack 26″ Lift Drop Leg Spring Return Pin on Front w/ Crank & Cross Shaft Tube

Description

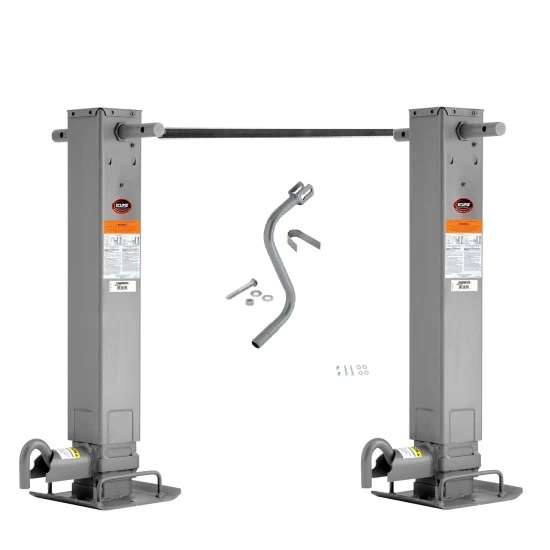

What’s Included:
Pro Series 12,000 lbs. Square Trailer Jack 26″ Lift Drop Leg Spring Return Pin on Front w/ Crank
Pro Series 12,000 lbs. Square Trailer Jack 26″ Lift Drop Leg Spring Return Pin on Front w/ Crank
73″ Cross Shaft Tube
Crank Handle

Strong, durable, and sturdy, the Pro Series 12,000 lbs. support capacity square jacks can be used on agricultural,  construction, heavy-duty utility, and horse/livestock trailers. All Pro Series 4″ square jacks are rated for 12,000 lbs. support capacity and 10,000 lbs. lift capacity. The strength of the product, plus the wide variety of styles, makes this jack the best choice in its product class.

Specifications:

• Support Capacity: 12,000 lbs.

• Lift Capacity: 10,000 lbs.

• Retracted Bracket Height: 28.25″

• Extended Bracket Height: 54.25″

• Travel/Lift: 12.5″

• This Jack is intended to be welded on directly onto your application

• Spring Return Drop Leg w/ integrated footplate

• Drop Leg offers 13.50″ of additional adjustment

• Drop Leg pull pin is on the front of the Jack, away from the handle

• 4″ Tubing width
