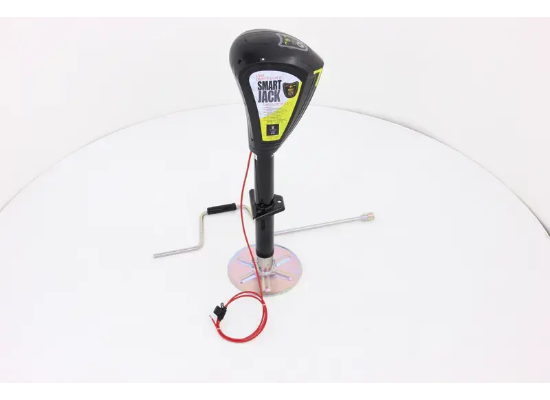

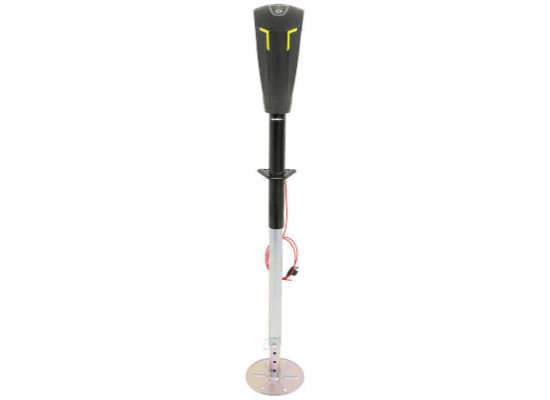

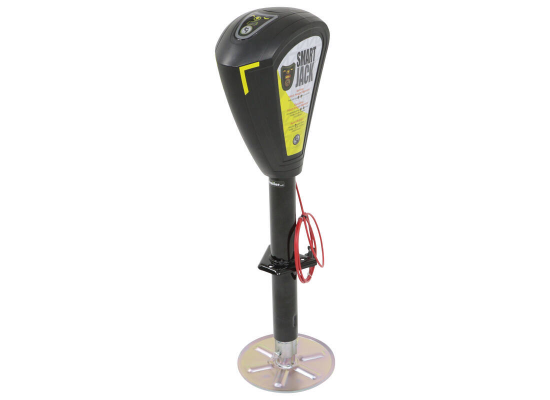

Lippert Smart Jack Electric Trailer Jack w/ Footplate – A-Frame – 22-1/2″ Lift – 3.5K – Black

Description

Lippert Camper Jacks

Powered A-frame jack automatically extends and retracts to your set height – no more holding a switch while the jack gets into position. Jack has 18″ of screw travel. Drop leg provides 4-1/2″ of additional lift. Includes 9″ footplate.

Features:

• Electric jack lets you raise and lower your A-frame trailer quickly and easily
• Up/down buttons allow easy one-touch operation
• Hitch recognition memory function makes hooking up simple
  • Automatically returns your trailer to the position at which you unhooked
• Helical-cut gears with angled teeth gradually mesh for quiet, efficient operation

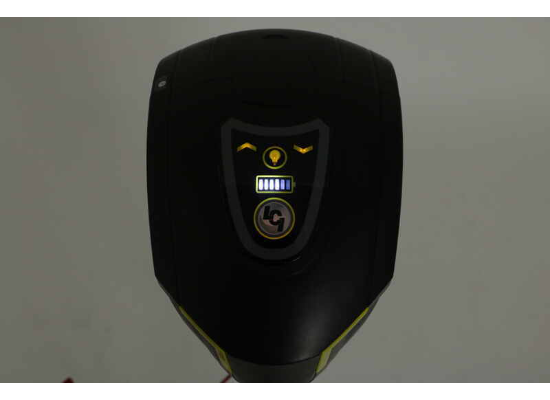

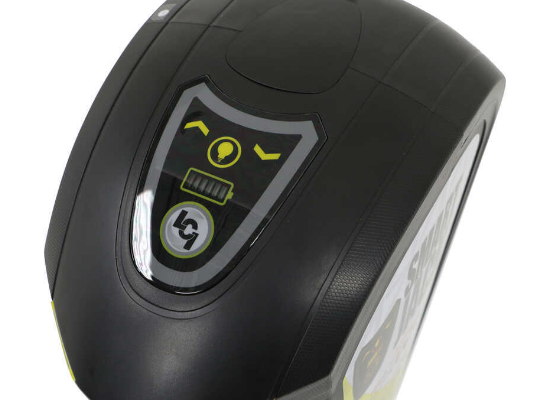

• Backlit control panel makes it easy to see and operate this jack at night
  • Battery indicator on control panel displays the coach battery level
• LED halo lights illuminate downward to help you focus on your coupler, hitch ball, and weight distribution hookup

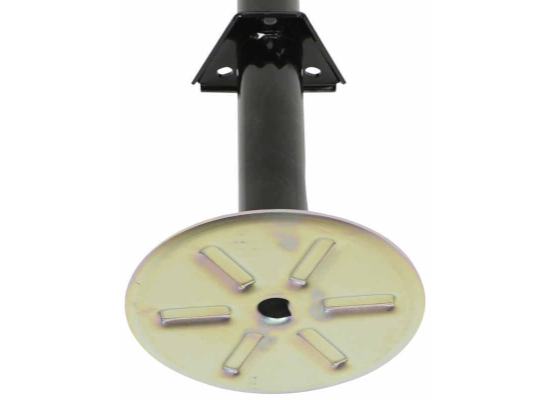

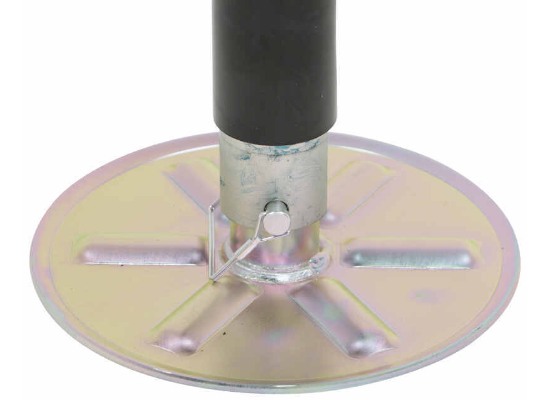

• Extra-large footplate provides excellent stability

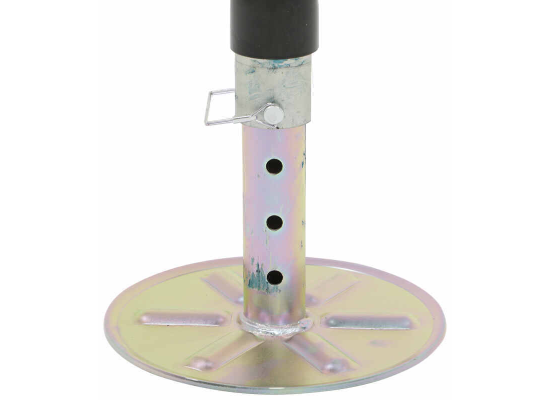

• Drop leg offers additional height adjustment

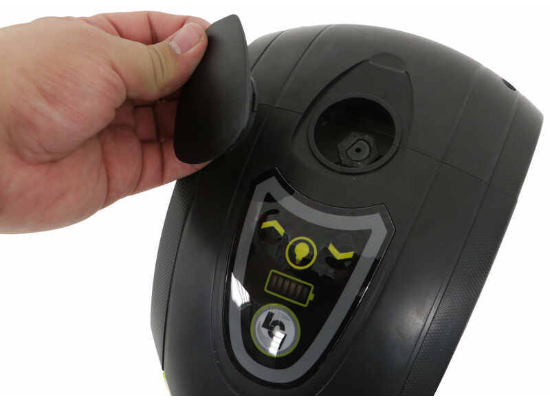

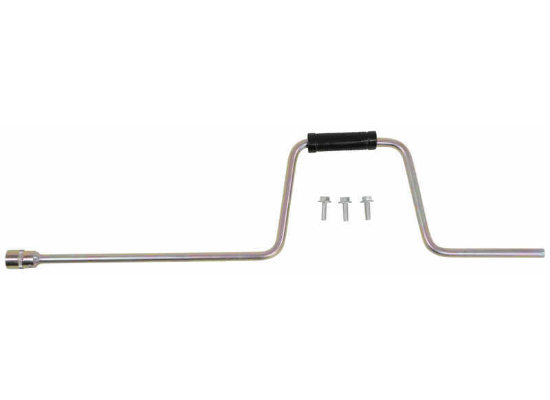

• Manual override is located conveniently at the top of the jack, if needed
• Heavy-gauge steel construction ensures durability and strength
• Black powder coat finish resists rust and corrosion
• Durable, textured-housing prevents chips and cracks
• Easy bolt-on installation
  • Wires to 12-volt power source

Specs:

• Total lift: 22-1/2″
  • Screw travel: 18″
  • Drop leg travel: 4-1/2″
• Footplate diameter: 9″
• Motor voltage: 12 volts
  • Power consumption: 30 amps
• Lift capacity: 3,500 lbs
• 1-Year limited warranty

How to Determine the Lift Capacity You Need in a Jack

A trailer jack is designed to lift the tongue of your trailer so you can connect the trailer coupler to your hitch ball. To do this, you’ll need a jack with a lift capacity high enough to handle your trailer’s tongue weight.

Tongue weight is the amount of weight that your trailer applies to the back of your tow vehicle. Typically, your tongue weight should be 10-15% of your total trailer weight (trailer + cargo). In other words, a 10,000-lb trailer would have a tongue weight between 1,000 lbs and 1,500 lbs. For a trailer this size, you would need a jack with a lift capacity of at least 1,500 lbs.

It’s okay to have a jack with a weight rating that is higher than your trailer’s tongue weight. In fact, a jack with a higher lift capacity should operate more efficiently, allowing you to spend less time cranking and more time camping.

Trailer and Camper Jack Lift

Every jack offers a certain amount of lift or travel. Screw travel is the distance the jack extends when you crank it (or toggle it to “extend” on an electric model). Some jacks include a drop leg for extra adjustability. On these jacks, you’ll see the maximum extension of the drop leg listed in the specs as well. Adding the screw travel and drop leg travel together will give you the total lift. The total lift listed above can help you determine how high this jack will be able to raise your trailer.
