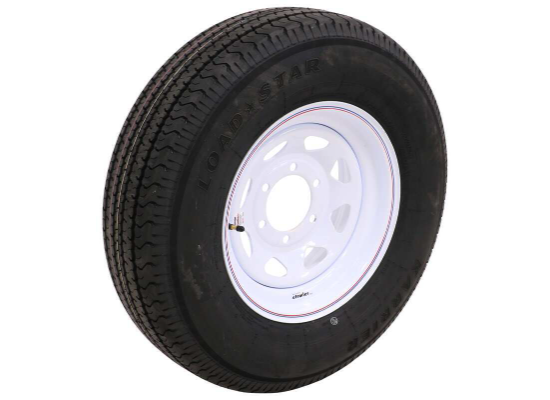

Karrier ST225/75R15 Radial Tire with 15″ White Spoke Wheel – 6 on 5-1/2″ – Load Range E

Description

Kenda Trailer Tires and Wheels – AM32680

Radial tire has a ply rating of 10 and a 2,830-lb maximum load at 80 psi. The 15″ diameter x 6″ wide steel trailer wheel features a 6 on 5-1/2 bolt pattern and a corrosion-resistant powder coat finish.

Features:

• Kenda Karrier special trailer radial tire
  • Special trailer tire design
    • Couples the strength of a bias tire with the durability and stability of a radial tire
    • Created specifically for trailers and not intended for use on other vehicles
  • Double steel belts and full nylon plies combine for superior function and long life
  • Computer-generated tread design and premium rubber-compound materials
    • Superior traction in wet or dry conditions
• 8-Spoke steel wheel by Dexstar
  • Resists rust with e-coat and white powder coat finishes
• Tire-and-wheel assembly meets Department of Transportation specifications
• Valve stem is constructed of steel reinforced rubber and rated up to 100 psi

Specs:

• Rim dimensions: 15″ diameter x 6″ wide
• Bolt pattern: 6 on 5-1/2″
• Capacity: 2,830 lbs
• Wheel bolt size: 1/2″
• Offset: 0
• Pilot diameter: 4.27″
• Tire size: ST225/75R15
  • Section width: 8.9″
  • Outer diameter (when inflated): 28.4″
• Tire capacity:
  • Load range: E
  • Ply rating: 10
  • Maximum load: 2,830 lbs at 80 psi
• Maximum speed: 81 mph (speed rating M)
• Warranty:
  • 5-Year on tire
  • Limited 1-year on wheel

Radial Tires vs. Bias Tires

Radial ply tires are designed for trailers that are towed on the highway. The cords on a radial tire are positioned at a 90-degree angle to the direction of travel so that they lay across the width of the tire from wheel lip to wheel lip. This construction prevents the cords from rubbing against one another when the tire flexes, unlike the cords on a bias ply tire. As a result, radial tires have less rolling resistance and heat buildup, which leads to a longer tread life and improved steering at higher speeds.

Determining the Bolt Pattern

The first number in the bolt pattern is the number of bolt holes. The second number denotes the diameter, in inches, of the circle on which the bolt holes sit.

To determine the bolt-circle diameter on wheels with an odd number of bolt holes, measure from the center of any bolt hole to the point halfway between the two bolt holes directly across from the first. (Example: “5 on 4-1/2″ means 5 bolt holes with 4-1/2” measured to a point halfway between the opposite bolt holes.)

On wheels with an even number of bolt holes, measure from the center of one bolt hole to the center of the hole directly across from it. (Example: “8 on 6-1/2″ means 8 bolt holes with 6-1/2” from the center of one hole to the center of another on the opposite side.)

Measuring the distance from the center of one bolt hole on the wheel to the center of a bolt hole right next to it can also help to determine the bolt pattern.

• If D = 2-5/8″, then the bolt pattern is 5 on 4-1/2″
• If D = 2-3/4″, then the bolt pattern is 5 on 4-3/4″
• If D = 3″, then the bolt pattern is 5 on 5″
• If D = 3-1/4″, then the bolt pattern is 5 on 5-1/2″
