Furrion Pure Sine Wave Inverter – 1,000 Watts – Deck Mount – 12V

Description

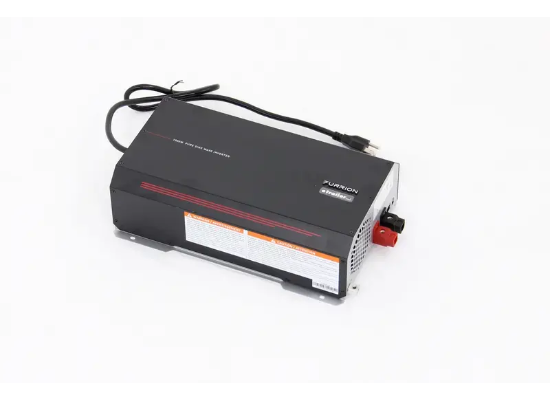

Furrion RV Power Inverter – FIVBDP10A

1,000-Watt pure sine wave inverter provides AC power to your RV’s electrical system. Changes your battery’s DC output into AC power for sensitive electronics and appliances. Transfer switch and micro-processor automatically operate settings.

Features:

• 1,000-Watt pure sine wave inverter provides AC power for your RV’s electronics and appliances
  • Changes your battery’s DC output into clean AC power
  • Requires less than 10′ between inverter and vehicle battery
• Pure sine wave technology allows you to run AC devices safely and efficiently
  • Replicates household AC power to run sensitive electronics
• Built-in transfer switch lets you select different voltages and frequencies and controls the power saving mode
  • Moves between 2 power sources in less than 20 milliseconds
• Integrated safety features protect your RV’s electrical system
  • Current protection for over/under voltage, short circuiting, overloading, and over/under temperature
  • Cooling fan controls the temperature of the inverter and removes excess heat generated by the unit

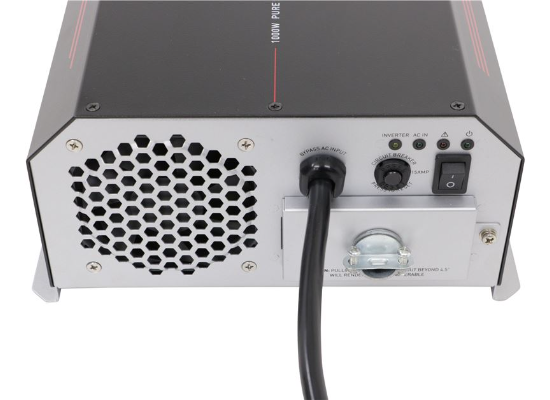

  • LED indicator lights show input voltage level, output load level, and fault conditions
• Advanced micro-processor automatically activates transfer switch and safety features
• Multiple connection points let you secure cables and external devices to the inverter
  • Includes hardware AC terminal, DC input terminals, and remote port

Specs:

• Overall dimensions: 16-3/4″ long x 9-5/16″ wide x 4-7/16″ deep
  • Mounting holes: 11-15/16″ long x 8-3/4″ wide
• Rated power:
  • Running (rated) power output: 1,000 watts
  • Starting (surge) power output: 2,500 watts
• Voltage:
  • Maximum power: 100V – 120V AC
  • Input: 10V – 15V DC
  • Output: 110V – 120V AC
• Current consumption:
  • Circuit breaker: 15 amps
  • Transfer relay: 16 amps
  • Fuse capacity: 150 amps
• Output frequency: 60±1Hz
• Maximum peak efficiency: 88%
• Temperature ranges:
  • Operating range: 32 F to 104 F
  • Storage range: -22 F to 158 F
• Maximum wire gauge: #4 AWG
• Weight: 12.13 lbs
• 1-Year warranty

This 12V inverter changes DC output from your RV batteries into AC power and sends it to the electrical system. Using pure sine wave technology, it creates clean power with low distortion, making it safe, efficient, and perfect for sensitive electronics like computers and TVs. Plus, the inverter can generate 2,500 starting watts and 1,000 running watts which is a great fit for laptops, TVs, and charging your smartphone.

Function and Features

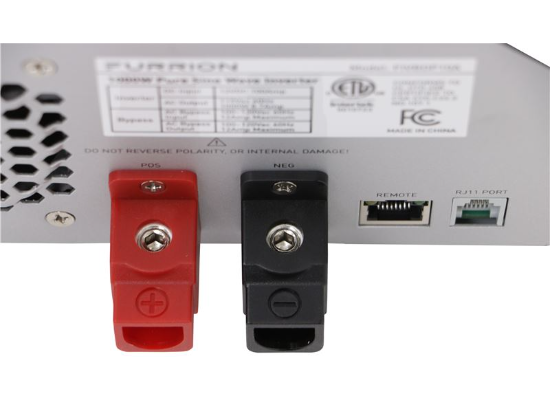

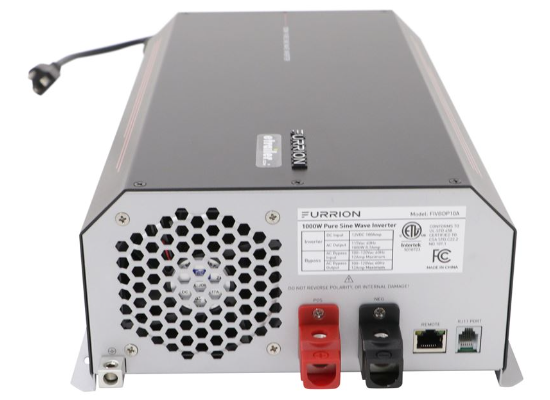

The inverter includes a hardwire AC terminal for AC loads, positive and negative DC input terminals that connect your batteries, and a port for a fixed-mount remote (sold separately). The function switch lets you select different output voltages and frequencies and also has a transfer time of less than 20 milliseconds.

Built-in safety features help protect your RV’s electrical system. They offer protection from over/under voltage, overloading, and overcurrent. The inverter also protects from extreme temperatures, and an internal cooling fan removes excess heat from the unit.

The integrated micro-processor determines which voltages, frequencies, and safety features are needed according to the state of the battery.

How it Installs

The inverter mounts inside your RV in a dry location with ventilation. It should be installed in close proximity to the battery bank, but not in the same compartment. The DC terminals are wired to the battery bank. There are several ways to connect the inverter to your RV’s electrical system, but this will depend on your rig and how you want to use your inverter.
