CE Smith Trailer Axle Beam with Studded Hubs – 5 on 4-1/2″ – 54″ Long – 1.8K
Original price was: 264.00$.180.00$Current price is: 180.00$.
Delivery in 2-3days
30days Return Policy
3Years WarrantyÂ
Description
Description
CE Smith Trailer Axles – CES84XR
- 1800 lbs
- 49 Inch Hub Face
- 5 on 4-1/2 Inch
- 38-1/2 Inch Spring Center
- No Drop or Lift
- Idler Hubs
- Leaf Spring Suspension
- CE Smith
- Standard Spindles

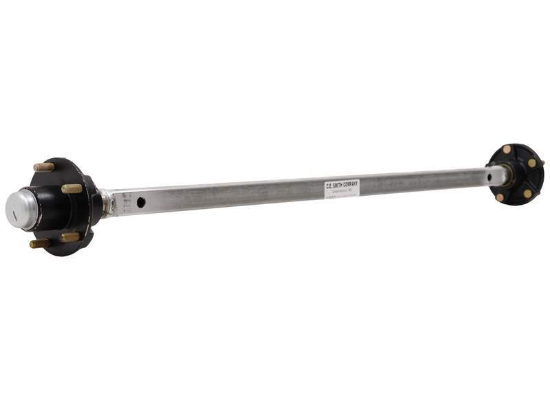

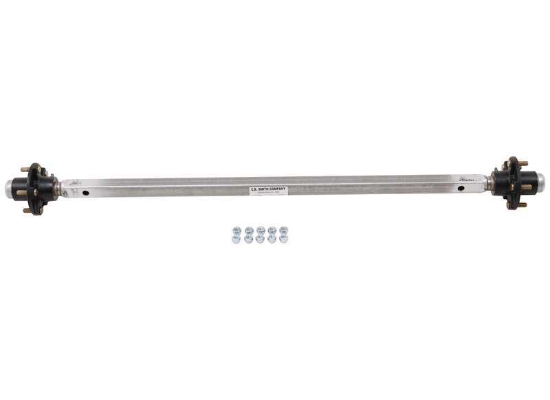

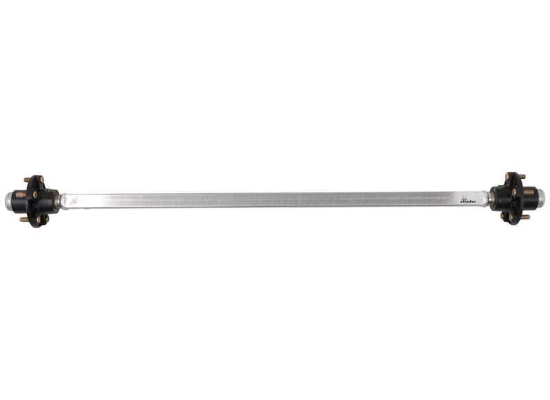

Trailer axle measures 49″ from hub face to hub face and 38-1/2″ from Spring center to spring center. Includes fully pre-assembled studded hubs. Made for a 40″ frame.
Features:
- Square axle beam acts as part of your trailer’ suspension system
- Replaces an axle on your trailer
- Straight spindles – no drop

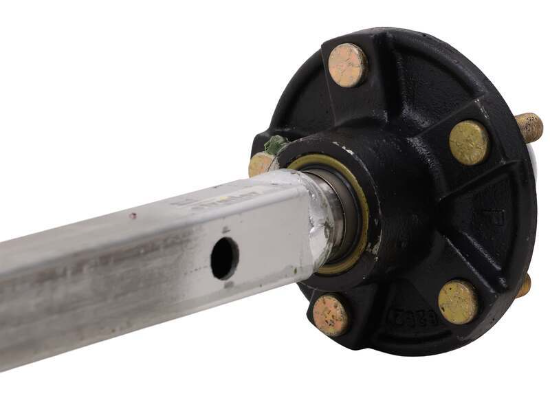

- Studded hubs are sturdy and corrosion resistant

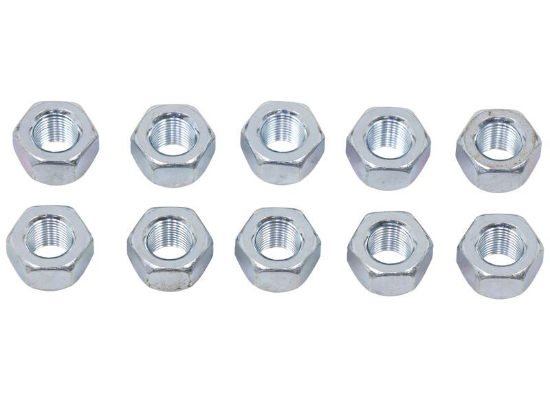

- Bearings, races, seals, grease caps, wheel studs, lug nuts, and quality calcium-sulfonate grease included
Specs:
- Weight capacity: 1,800 lbs
- Hub-face-to-hub-face length: 49″
- Spring-center-to-spring-center length: 38-1/2″
- Overall beam length: 54″
- Hub bolt pattern: 5 on 4-1/2″
