Bulldog Tandem Trailer Jack Landing Gear Set 24K Static 20K Lift Spring Return Drop Leg Complete System

Description

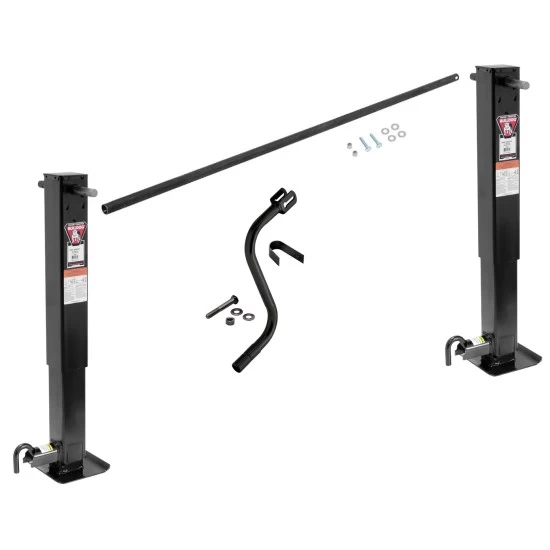

What’s Included:

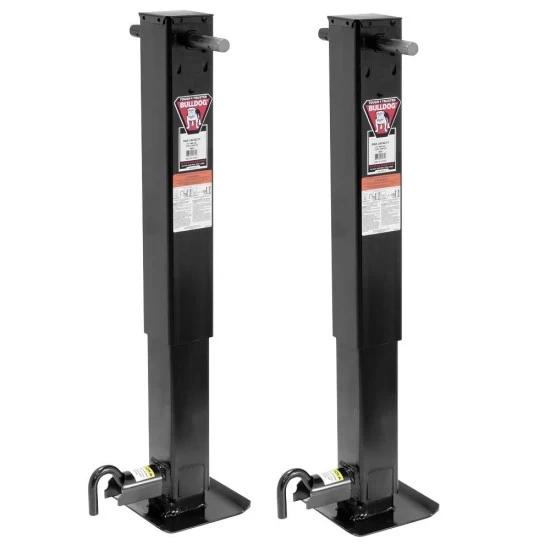

Quantity (2) Bulldog 12,000 lbs. Square Trailer Jacks Sidewind 26″ Lift Drop Leg w/ Spring Return

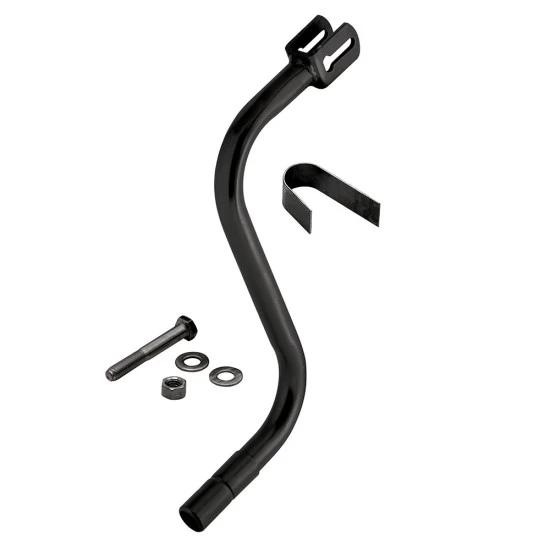

Crank Handle
73″ Cross Shaft (Can be cut to required length)

State of the art gearbox with power and speed for the most effective and efficient jack at all loads
Designed for today’s standard agricultural,  construction and industrial trailer applications.
User friendly design makes operation smooth  and easy
Drop Leg increases overall extension
Engineered alloys for enhanced strength, stability and sideload capability
Painted outer tube, inner tube, and drop leg.

Specifications:

Tandem Support Capacity: 24,000 lbs.
Tandem Lift Capacity: 20,000 lbs.
Retracted Height: 29.5″
Extended Height: 55.6″
Travel/Lift: 12.5″

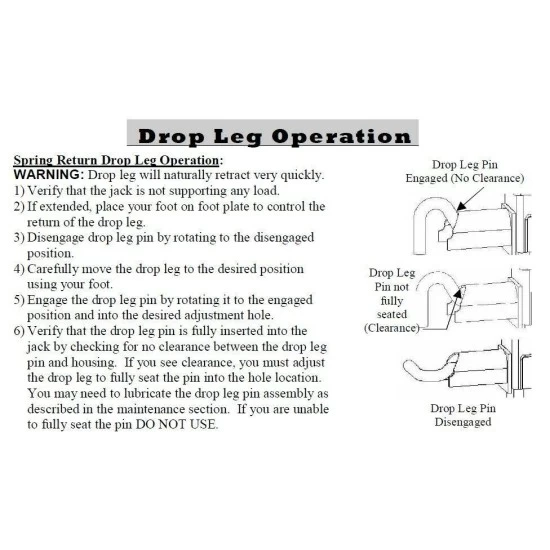

Spring Return Drop Leg allows 13.5” of additional adjustment
Standard disc foot included
Drop Leg Pull Pin is on the front
4″ Tubing width
